Yamaha WaveRunner Fault Code List [Chart]
Even if you properly maintain your WaveRunner, problems can still occur. Malfunctions are always a big hassle, especially if you are on an offshore ride!
If your WaveRunner won’t start or has other issues, you can try to troubleshoot the problem yourself.
But if you can’t solve the problem, you will have to read the fault codes to learn more about the fault.
For your convenience, we at JetDrift have compiled the official Yamaha WaveRunner fault codes into this post, which also explains how to read them!
How to Read Yamaha WaveRunner Fault Codes

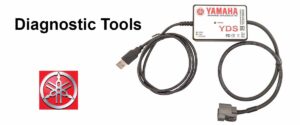

You can read the Yamaha WaveRunner fault codes with a Marine Engine Diagnostic System (MEDS) or CandooPro, which are special softwares designed for troubleshooting WaveRunners and other marine engines. You just have to connect the computer to the engine with the diagnostic cable that comes with the software. If you don’t want to invest in this software, you will have to take your WaveRunner to a dealership or service shop to read the fault codes.
There are many advantages of this MEDS marine diagnostic software, such as:
– Compatible with different PWC models
– Compatible with several marine engines like Yamaha, Mercury, Suzuki, Tohatsu, Honda
– Diagnostic cables are included in the package
– It runs engine tests while it collects and registers data to diagnose problems.
– It can help you to determine the fault faster and much more efficiently.
– Has an easy-to-read, user-friendly interface.
One of the best features of MEDS is the History tab, where you can find all records and faults that have occurred in the past. This history can be saved into a file and erased if needed.
You can find the current faults with details on the ‘Active Faults Tab.’
Yamaha WaveRunner Fault Code List
When it comes to Yamaha fault codes, they are rarely found in one place. For better understanding, we’ve compiled all official Yamaha WaveRunner fault codes into one chart.
Official Yamaha WaveRunner Fault Code Chart
| Code | Desctription |
|---|---|
| 1 | 1 - Normal (No Faults) |
| 13 | 13 - Incorrect Pulsar Coil Signal |
| 14 | 14 - Incorrect Crank Position Sensor Signal |
| 15 | 15 - Incorrect Engine Temperature Sensor Signal |
| 17 | 17 - Knock Sensor |
| 18 | 18 - Incorrect Throttle Position Sensor Signal |
| 19 | 19 - Incorrect Battery Voltage |
| 22 | 22 - Incorrect Atmospheric Pressure Sensor Signal |
| 23 | 23 - Incorrect Intake Air Temperature Signal |
| 24 | 24 - EX CAM Position Sensor |
| 25 | 25 - Incorrect Fuel Pressure Signal |
| 26 | 26 - Incorrect Injector Signal |
| 27 | 27 - Incorrect Water in Fuel Signal |
| 28 | 28 - Incorrect Shift Position Switch Signa |
| 29 | 29 - Incorrect Intake Air Pressure Sensorl |
| 31 | 31 - No Tach Signal Output From ECU (OX66) |
| 33 | 33 - Ignition Timing Slightly Corrected due to Starting a Cold Engine |
| 35 | 35 - ECU Processing Information (OX66) |
| 36 | 36 - ECU Processing Information (OX66) |
| 37 | 37 - Intake Air Passage (Electronic Throttle Valve) or ECU Processing Information (OX66) |
| 38 | 38 - ECU Processing Information (OX66) |
| 39 | 39 - Oil Pressure Sensor |
| 40 | 40 - ECU Processing Information (OX66) |
| 41 | 41 - Overrev Control During Ignition Cutoff Operation (OX66) |
| 42 | 42 - Overheat Control or No Oil Control (OX66) |
| 43 | 43 - Buzzer Sounding (OX66) |
| 44 | 44 - Incorrect Engine Stop Lanyard Switch Signal |
| 45 | 45 - Shift Cut Off |
| 46 | 46 - Overheat Switch |
| 49 | 49 - Over Cooling |
| 59 | 59 - ECM Memory (For Trouble Record Only) |
| 62 | 62 - 98 Low Fuel Pressure |
| 68 | 68 - VCT (S Bank) Starboard Valve Pulley Abnormal Advance |
| 69 | 69 - VCT (P Bank) Port Valve Pulley Abnormal Advance |
| 71 | 71 - S bank IN Starboard IN CAM Position Sensor |
| 72 | 72 - P bank IN Port IN CAM Position Sensor |
| 73 | 73 - OCV (S Bank) Starboard Oil Control Valve |
| 74 | 74 - OCV (P Bank Port Oil Control Valve |
| 75 | 75 - RCS |
| 76 | 76 - RCS |
| 77 | 77 - RCS |
| 78 | 78 - RCS |
| 79 | 79 - RCS |
| 80 | 80 - RCS |
| 81 | 81 - RCS |
| 82 | 82 - RCS |
| 83 | 83 - Tirm/Tilt Angle Sensor |
| 84 | 84 - RCS |
| 85 | 85 - IDM Ioncurrent Detection Module |
| 86 | 86 - Y-COP Immobilizer, Theft Deterrent. |
| 87 | 87 - Remote Control System |
| 98 | 98 - 62 Low Fuel Pressure |
| 112 | 112 - ETV ETS (ECM-sub) |
| 113 | 113 - ETV ETS (ECM-System) |
| 114 | 114 - ETV ETS (ECM- Main) |
| 115 | 115 - ETV ETS (Throttle Valve Open) |
| 116 | 116 - ETV ETS (Throttle Valve Closed) |
| 117 | 117 - ETV ETS (Driving Motor P Short) |
| 118 | 118 - ETV ETS (Driving Motor N Short) |
| 119 | 119 - ETV ETS (Driving Motor Connector Openz) |
| 121 | 121 - ETV ETS (Communication Error) |
| 122 | 122 - ETV ETS (Driving Motor Heat) |
| 123 | 123 - ETV ETS (Driving Motor Relay) |
| 124 | 124 - TPS MTPS Open |
| 125 | 125 - TPS MTPS Short |
| 126 | 126 - TPS Throttle Position Sensor Character Fail |
| 127 | 127 - TPS Sub Throttle Position Sensor Open |
| 128 | 128 - TPS Sub Throttle Position Sensor Short |
| 129 | 129 - ETV MTPS |
| 131 | 131 - APS/ETV |
| 132 | 132 - APS/ETV |
| 133 | 133 - APS/ETV |
| 134 | 134 - APS/ETV |
| 135 | 135 - APS/ETV |
| 136 | 136 - ETV ETS Comm.Error Main |
| 137 | 137 - ETV ETS Communication Error Sub |
| 138 | 138 - ETV ETS (ECM Main) |
| 139 | 139 - ETV ETS (ECM Sub) |
| 140 | 140 - ETV |
| 141 | 141 - ETV ETS Throttle Position Sensor Voltage |
| 142 | 142 - ETV ETS Return Spring |
| 143 | 143 - ETV ETS Comm. Error |
| 144 | 144 - ETV ETS Low Voltage Mode |
| 145 | 145 - ETV ETS Throttle Valve |
| 146 | 146 - SPS Main SSS Power Short/Ground Open |
| 147 | 147 - SPS Main SSS Power Open/Ground Short |
| 148 | 148 - SPS Sub SSS Power Short/Ground Open |
| 149 | 149 - SPS Sub SSS Power Open/Ground Short |
| 150 | 150 - SPS SSS Character Fail |
| 151 | 151 - SPS |
| 152 | 152 - SPS |
| 153 | 153 - SPS Shift Motor Over Current |
| 154 | 154 - SPS Shift Motor Deadlock While Stopping |
| 155 | 155 - SPS Shift Motor Deadlock While Operating |
| 156 | 156 - Comm. Error 1 Channel Engine remote Connector |
| 157 | 157 - Comm. Error 2 Channel Engine remote Connector |
| 160 | 160 - MSLPS 1 Main Power Short/Ground Open |
| 161 | 161 - MSLPS 1 Main Power Open/Ground Short |
| 162 | 162 - MSLPS 1 Sub Power Short/Ground Open |
| 163 | 163 - MSLPS 1 Sub Power Open/Ground Short |
| 164 | 164 - MSLPS 1 Watching Fail |
| 165 | 165 - MSLPS Character Fail |
| 166 | 166 - MSLPS 2 Main Power Short/Ground Open |
| 167 | 167 - MSLPS 2 Main Power Open/Ground Short |
| 168 | 168 - MSLPS 2 Sub Power Short/Ground Open |
| 169 | 169 - MSLPS 2 Sub Power Open/Ground Short |
| 170 | 170 - MSLPS 2 Character Fail |
| 171 | 171 - SSLPS 1 Main Power Short/Ground Open |
| 172 | 172 - SSLPS 1 Main Power Open/Ground Short |
| 173 | 173 - SSLPS 1 Sub Power Short/Ground Open |
| 174 | 174 - SSLPS 1 Sub Power Open/Ground Short |
| 175 | 175 - SSLPS 1 Watching Fail |
| 176 | 176 - SSLPS 1 Character Fail |
| 177 | 177 - SSLPS 2 Main Power Short/Ground Open |
| 178 | 178 - SSLPS 2 Main Power Open/Ground Short |
| 189 | 179 - SSLPS 2 Sub Power Short/Ground Open |
| 180 | 180 - SSLPS 2 Sub Power Open/Ground Short |
| 181 | 181 - SSLPS 2 Character Fail |
| 183 | 183 - Station Selector System Fail |
| 184 | 184 - Lever Selector System Fail |
| 186 | 186 - Sub Station Communication Error |
| 187 | 187 - Lever Pickup Abnormal |
| 252 | 252 - FC Invalid Code---Engine Overheat |
| Acronym | Description |
|---|---|
| ETS | Electronic Throttle System |
| ETV | Electronic Throttle Valve |
| OCV | Oil Control Valve |
| MSLPS | Main Station Lever Position Sensor |
| MTPS | Main Throttle Position Sensor |
| RCS | Remote Control System |
| SPS | Shift Position Sensor |
| SSLPS | Sub Station Lever Position Sensor |
| SSS | Shift Position Sensor |
| TPS | Throttle Position Sensor |
Conclusion
You can read fault codes on a WaveRunner with special diagnostic software. The two most commonly used softwares are the MEDS (Marine Engine Diagnostic Software) and the CandooPro.
You have to install them on your computer and connect it to the WaveRunner with a diagnostic cable, which is included in the package.
It’s an easy and convenient way for you to read the fault codes on your WaverRuuner yourself.
Drawbacks?
Unfortunately, these softwares are quite expensive. As an example, CandooPro Home/Limited Edition costs around $400.
If you don’t want to invest in one of these diagnostic softwares, your other option is to take your WaveRunner to a dealership.
Let’s face it, this is often the best option, because even if you can read the fault code at home, you will probably have to take the craft to a mechanic for repairs.
Sources:
https://marinediagnostictools.com/blogs/news/marine-engine-diagnostic-system-meds-review
https://www.cdielectronics.com/wp-content/uploads/2016/12/M.E.D.S.-Yamaha-Fault-Code-List1.pdf
