Yamaha EX Review and Specs [Video]

Home/News/Yamaha EX Review and Specs [Video]

The Yamaha EX is the most affordable WaveRunner in Yamaha’s fleet. It shares its platform and engine with the other EX WaveRunners and the “all-new” JetBlaster.  If you want to find out more about the base EX WaveRunner, you’ve come to the right place.

We at JetDrift have compiled the specs and all the key info you need into this Yamaha EX review!

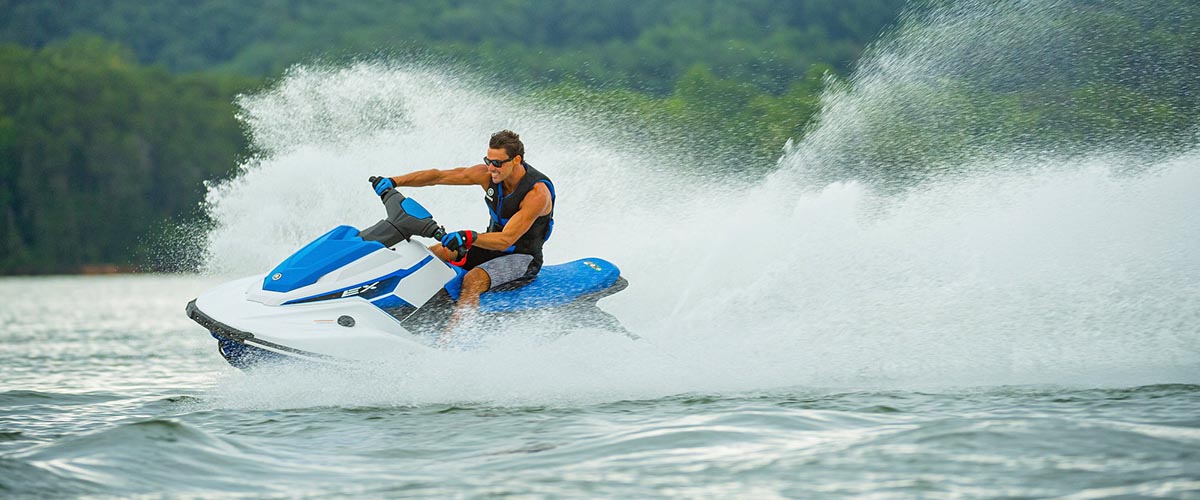

Yamaha EX Review

Yamaha released the EX family in 2017 to compete with the widely popular Sea-Doo Spark series. All of these machines are categorized in the Rec-Lite class.

The 2022 Yamaha Rec-Lite WaveRunner line consists of four different models, including:

(You can discover these models by following the links above.)

The most basic and affordable model in this breed is the Yamaha EX. Let’s drill into the details and take a closer look at this ski!

Dimensions and Capacities

Compared to its full-sized brothers, the entire EX family is built on a much smaller platform.

The hull of the Yamaha EX is 123.2 inches long, 44.5 inches wide, and 45.3 inches high. The dry weight of this ski is only 578 pounds, which translates to an approximate curb weight of 670 pounds.

Thanks to this lightweight body, the EX is easy to handle, and can even be towed by a small car.

Regarding capacities, the total storage capacity of the Yamaha EX is 7.7 gallons, which splits into a wet bow storage, a roomy glove box, and a small under-seat storage.

The ski also houses a 13.2-gallon fuel tank that provides more than 4 hours of playtime at the best cruise speed. However, if you ride hard, you can dry its tank out in only 1.7-2 hours!

Yamaha EX Engine and Propulsion

The engine of the 2022 Yamaha EX is the reliable Yamaha TR-1 Marine Engine. This lively 1049cc, 4-stroke triple puts out 100 HP at 7,200-7,300 RPM.

The key features of the Yamaha EX engine are as follows:

  • Displacement: 1049cc
  • 3 cylinders
  • 4-stroke
  • Bore x stroke (mm): 82 × 66.2
  • Naturally-aspirated
  • Electronic fuel injection system
  • Total oil capacity: 3.91 US qt.
  • Open-loop cooling system

Power is delivered towards the 144mm axial flow jet pump through a direct drive shaft.

Yamaha EX Performance and Handling

Although this model is considered an entry-level Yamaha WaveRunner, it offers pretty good performance.

The top speed of the Yamaha EX is about 50-51 mph, and it can go from 0 to 30 mph in 2.3-2.5 seconds or 0 to 50 mph in 10-11 seconds. With some aftermarket modifications, you can increase its top speed to 55-58 mph.

This machine is definitely not the fastest jet ski in the marketplace, but don’t forget that 50 mpg is very fast on the water!

What’s more, thanks to its lightweight and agile hull, the EX offers very playful rides.

On the other hand, it’s good to know that even if the EX is marketed as a 3-seater jet ski, it can barely carry three adult riders. Instead, this model is mainly recommended for solo rides or for a maximum of two average-sized adults.

Although its weight capacity is 529 pounds, its hull becomes very tipsy and hard to maneuver with this load, especially at lower speeds.

Consequently, if you are looking for a family jet ski, you should take a look at the more stable VX series of the rival Sea-Doo GTI line.

Yamaha EX Features

The key features of the 2022 Yamaha EX are as follows:

  • Multifunction information center
  • Ski hook
  • Deck mats
  • Glove box
  • Underseat storage
  • Wet bow storage

The biggest drawback of the base Yamaha EX is that it comes without a reverse system. The lack of reverse makes maneuvering more difficult around docks, launching the craft, and riding in tight places.

The more advanced EX models come with higher price tags, but they are equipped with mechanical reverse and other bells and whistles.

Yamaha EX Specs Chart

For your convenience, we’ve listed the 2022 Yamaha EX specifications in these charts!

Yamaha EX Engine Specs

Engine Specs
Engine typeLiquid cooled 4-stroke (DOHC)
Number of cylinders3
Bore x Stroke82.0 x 66.2 mm (3.23 x 2.61 in)
Displacement1 049 cm³
Compression ratio11.0 :1
Cooling SystemWater
Lubrication SystemDry sump
Starting SystemElectric
Ignition SystemT.C.I.
Spark plugNGK -CR9EB
Spark plug Gap0.7 - 0.8 mm (0.028 to 0.031 in)
Battery typeYTX20L-BS
Battery capacity12 V, 18 Ah
Charging SystemFlywheel magneto

Yamaha EX Fuel and Oil Specs

Fuel and Oil Specs
Recommended fuelRegular unleaded gasoline
Fuel Recommended OctaneMinimum octane rating (PON): 86 - Minimum octane rating (RON): 90
Recommended engine oilYamalube 4W or 4-stroke motor oil
Fuel tank total capacity50 L (13.2 US gal)
Engine oil total quantity 3.7 L (3.91 US qt)

Yamaha EX Performance

Performance
Maximum Output74.6 kW at 7300 r/min
Maximum Fuel Consumption7.7 US gal/h (29.2 L/h)
Cruising Range / at full throttle1.71 hours
Trolling speed1500 +/-100 r/min

Yamaha EX Propulsion

Drive Unit
Propulsion systemJet pump
Jet pump typeAxial flow, single stage
Impeller rotationCounter clockwise
Jet thrust nozzle angle24 + 24°

Yamaha EX Dimensions and Capacities

Dimensions and Capacities
Overall length3.13 m (123.2 in)
Overall width1.13 m (44.5 in)
Overall height1.15 m (45.3 in)
Dry weight578 lb (262 kg)
Number of passenger (driver incl.)3
Maximum load capacity496 lb (225 kg)

These charts are for informational purposes only! For exact specifications, please refer to the factory manual.

Yamaha EX Comparison Chart

For your convenience, we’ve compiled the key differences between the EX WaveRunner models into one chart:

Yamaha EX vs. EX Sport vs. EX Deluxe vs. EX Limited Comparison

FeaturesBase EXEX SportEX DeluxeEX Limited
ReverseNoYes (Mechanical)Yes (RiDE)Yes (RiDE)
BrakeNoNoYes (RiDE)Yes (RiDE)
MirrorsNoYesYesYes
Reboarding StepNoYesYesYes
Pull-up cleatsNoNoNoYes
Portable speakersNoNoNoYes
Tow packageNoNoNoYes
Large watertight bow storageNoNoNoYes
Branded fendersNoNoNoYes
Branded coverNoNoNoYes
SponsonsNormalNormalNormalAdvanced

Takeaway

As a takeaway, we’ve answered the most common questions about the Yamaha EX!

What Size is a Yamaha EX?

The Yamaha EX is 123.2 inches long, 44.5 inches wide, and 45.3 inches high.

How Much Does a Yamaha EX Weigh?

The dry weight of the Yamaha EX is a remarkable 578 pounds, but you can expect the curb weight of this machine to be about 670 pounds.

What Kind of Engine is in the Yamaha EX?

The engine of the Yamaha EX is the reliable TR-1 Yamaha Marine Engine. This 1049cc, 4-stroke triple features an electronic fuel injection system and open-loop water cooling.

How Much Horsepower Does a Yamaha EX Have?

The lively Yamaha EX is officially rated at 100 HP.

Is the Yamaha EX Supercharged?

No, the Yamaha EX is not supercharged, as it’s powered by the naturally-aspirated TR-1 engine.

How Fast Can a Yamaha EX Go?

The top speed of the Yamaha EX is about 50-51 mph in stock condition, which can be increased to the 55-58 mph range with some aftermarket performance modifications.

How Fast Does a Yamaha EX Go From 0 to 60?

The Yamaha EX is capable of going from 0 to 30 mph in 2.3 seconds.

How Much Weight Can a Yamaha EX Hold?

The total weight capacity of the Yamaha EX is 496 pounds.

How Much Fuel Does a Yamaha EX Hold?

The Yamaha EX is equipped with a 13.2-gallon fuel tank.

How Much Fuel Does a Yamaha EX Use?

Based on our research, the Yamaha EX burns 3.0-3.5 gallons per hour (GPH) at a speed of 28-29 mph and 7..5-8.0 GPH at 50-51 mph.

What is the Range of a Yamaha EX?

Depending on the external conditions, the load, and your riding style, the fuel range of this ski varies widely. But as a rule of thumb, the fuel range of the Yamaha EX is about 100-120 miles at best cruise speed and 80-85 mph at full speed.

Again, pretty average numbers, as the fuel range of a jet ski depends on many factors!

What is a Yamaha EX?

The Yamaha EX is the cheapest Yamaha WaveRunner available. This model was introduced in 2017 and classed in the Rec-Lite category.

Does the 2022 Yamaha EX Have Reverse?

No, unfortunately, the 2022 Yamaha EX comes without reverse.

Does the 2021 Yamaha EX Have RiDE?

No, the 2022 Yamaha EX doesn’t feature the innovative Yamaha RiDE system.

Does 2022 Yamaha EX Have Trim?

No, the 2022 Yamaha EX is manufactured without a trim system.

What are the Color Options of the 2022 Yamaha EX?

The 2022 Yamaha EX is available in a “White with Azure Blue” color scheme.

Is the Yamaha EX Stable?

It’s safe to say that the Yamaha EX is a stable ski with one or two smaller adult riders. With two bigger or even three riders onboard its tiny hull becomes unstable and tipsy. This is why this ski is primarily recommended for solo rides.

Do Yamaha EXs Have Speakers?

Detachable, floating speakers are available for the Yamaha EX series as an option.

Can You Tow With a Yamaha EX?

Although it is possible to tow with a Yamaha EX, it’s not the best jet ski for tow sports.

What is the difference between the Yamaha EX and EXR?

The Yamaha EXR was a more sporty version of the EX series, discontinued after the 2020 model year.

How Many Passengers Can the Yamaha EX Carry?

Although the Yamaha EX can carry 3 adult passengers legally, this ski is offered for solo rides or a maximum of two average adult people.

What Size Storage Compartment Does the Yamaha EX Have?

The Yamaha EX features a convenient glovebox, wet front storage, and under-seat storage with a total capacity of 7.7 gallons.

How Long is the Factory Warranty on a Yamaha EX?

The factory warranty covers the Yamaha EX for one year.

How Much Does a Yamaha EX Cost?

In 2022, the Yamaha EX is available for an MSRP of $7,199.

Where Can You find a Yamaha EX For Sale?

If you are in the market for a Yamaha EX, don’t hesitate to contact the manufacturer’s official site.

You may also find our jet ski comparison tool useful, with which you can compare the latest jet ski models head-to-head!
